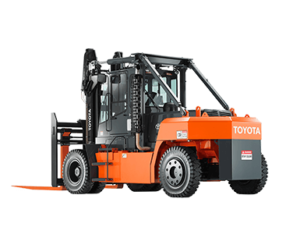

High Capacity IC Pneumatic
The High-Capacity IC Pneumatic Forklift is the largest forklift from Toyota. An extremely heavy load solution, capable of lifting up to 125,000 lbs., the High-Capacity IC Pneumatic Forklift is used on construction sites and loading full trailers onto large ships.
Download Brochure Download Spec Sheet Request a QuoteForklift Description
With a lift capacity up to 125,000 lbs., this large, rugged diesel forklift can handle almost any heavy load. Toyota’s High-Capacity IC Pneumatic Forklift is commonly found loading and unloading large shipping containers or on the construction site, providing lifting solutions for extremely heavy applications.
Forklift Video
Forklift Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
| 4FD100 | 22,000 | 17.4 | 91 | 54 | 185 |
| 4FD115 | 25,000 | 17.4 | 89 | 45 | 185.8 |
| 4FD120 | 26,000 | 17.4 | 89 | 43 | 185.8 |
| 4FD135 | 30,000 | 17.4 | 69 | 38 | 198.4 |
| 4FD150 | 33,000 | 16.8 | 80.7 | 39 | 211.8 |
| 4FD180 | 40,000 | 16.8 | 68.9 | 39 | 230.5 |
| 4FD200 | 44,000 | 17.4 | 67.9 | 26 | 234.1 |
| 4FD230 | 51,000 | 16.8 | 59.1 | 23 | 241.9 |
| 4FDK150 | 33,000 | 17.4 | 67 | 33 | 198.8 |
| 4FDK160 | 35,000 | 18 | 67 | 30 | 204.7 |
| 5FD100 | 22,000 | 17.4 | 91 | 54 | 185 |
| 5FD115 | 25,000 | 17.4 | 89 | 45 | 185.8 |
| 5FD120 | 26,000 | 17.4 | 89 | 43 | 185.8 |
| 5FD135 | 30,000 | 17.4 | 69 | 38 | 198.4 |
| 5FDK150 | 33,000 | 17.4 | 67 | 33 | 198.8 |
| 5FDK160 | 35,000 | 18 | 67 | 30 | 204.7 |
| THD10000-48 | ###### | 20.0 (no load) | 34.7 | 11.7 | 364 |
| THD11000-48 | ###### | 20.0 (no load) | 34.7 | 10.9 | 364 |
| THD12000-48 | ###### | 20.0 (no load) | 34.7 | 10.1 | 441 |
| THD12500-48 | ###### | 20.0 (no load) | 34.7 | 9.9 | 441.13 |
| THD2200-24 | 22,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 30 | 203.2 |
| THD2400-24 | 24,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 29 | 203.2 |
| THD2600-24 | 26,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 27 | 203.2 |
| THD2800-24 | 28,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 26 | 203.2 |
| THD3000-24 | 30,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 24 | 203.2 |
| THD3300-24 | 33,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 24 | 227 |
| THD3300S-24 | 33,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 23 | 203.2 |
| THD3600-24 | 36,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 22 | 237 |
| THD3600-36 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 20 | 242 |
| THD3600-48 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 242 |
| THD3600S-24 | 36,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 21 | 206 |
| THD3600S-36 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 206.5 |
| THD4000-48 | 40,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 18 | 252 |
| THD4500-48 | 45,000 | 24.9 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 305 |
| THD4500S-48 | 45,000 | 24.9 (no load) | 53.2 (standard) 106.4 (high-speed option) | 18 | 276.3 |
| THD5000-48 | 50,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 305 |
| THD5200-48 | 52,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 305 |
| THD5500-48 | 55,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 16 | 305 |
| THD6000-48 | 60,000 | 21.1 (no load) | 32.7 (standard) 65.4 (high-speed option) | 18 | 315 |
| THD6500-48 | 65,000 | 21.1 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 315 |
| THD7000-48 | 70,000 | 21.1 (no load) | 25 (standard) 50 (high-speed option) | 14 | 315 |
| THD7200-48 | 72,000 | 21.1 (no load) | 25 (standard) 50 (high-speed option) | 14 | 315 |
| THD8000-48 | 80,000 | 19.2 (no load) | 43.9 | 17 | 355.5 |
| THD8000S-48 | 80,000 | 19.2 | 43.9 | 16.2 | 319.3 |
| THD9250-48 | 92,500 | 20.0 (no load) | 43.9 | 12.7 | 355.5 |
| THD9250S-48 | 92,500 | 20.0 (no load) | 43.9 | 12.1 | 327.8 |
